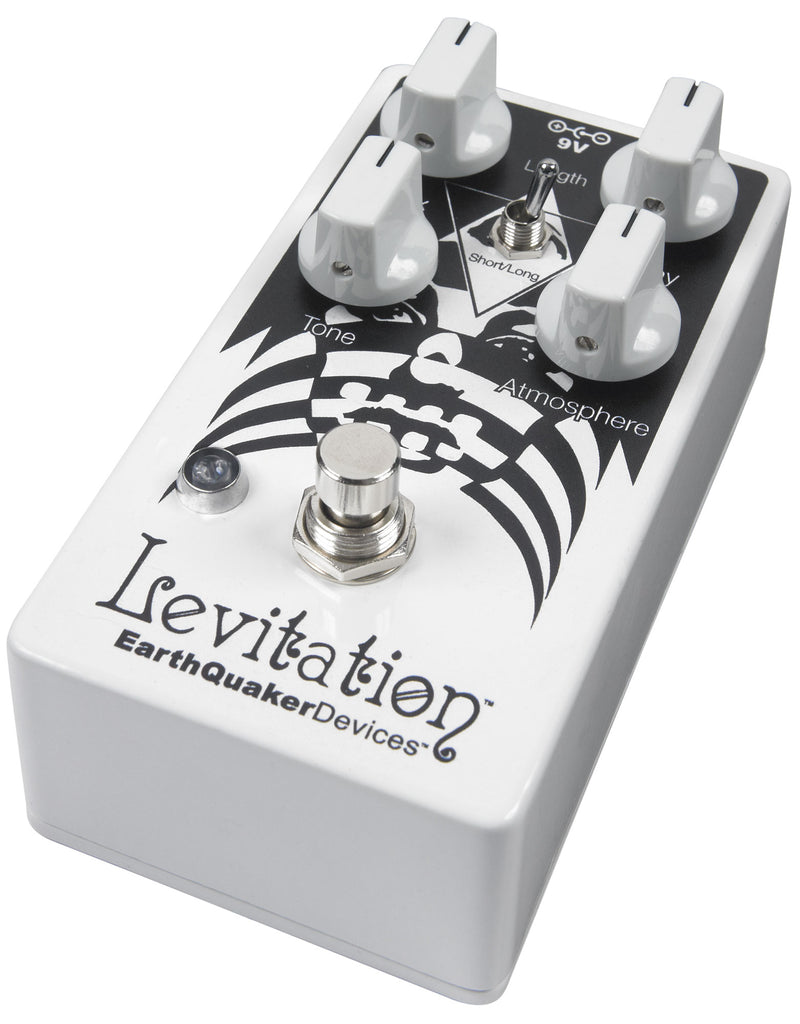

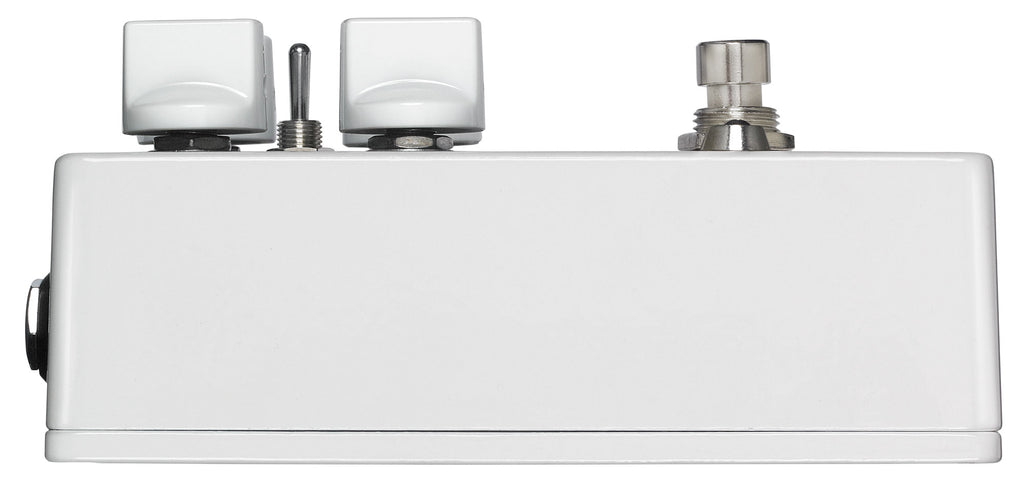

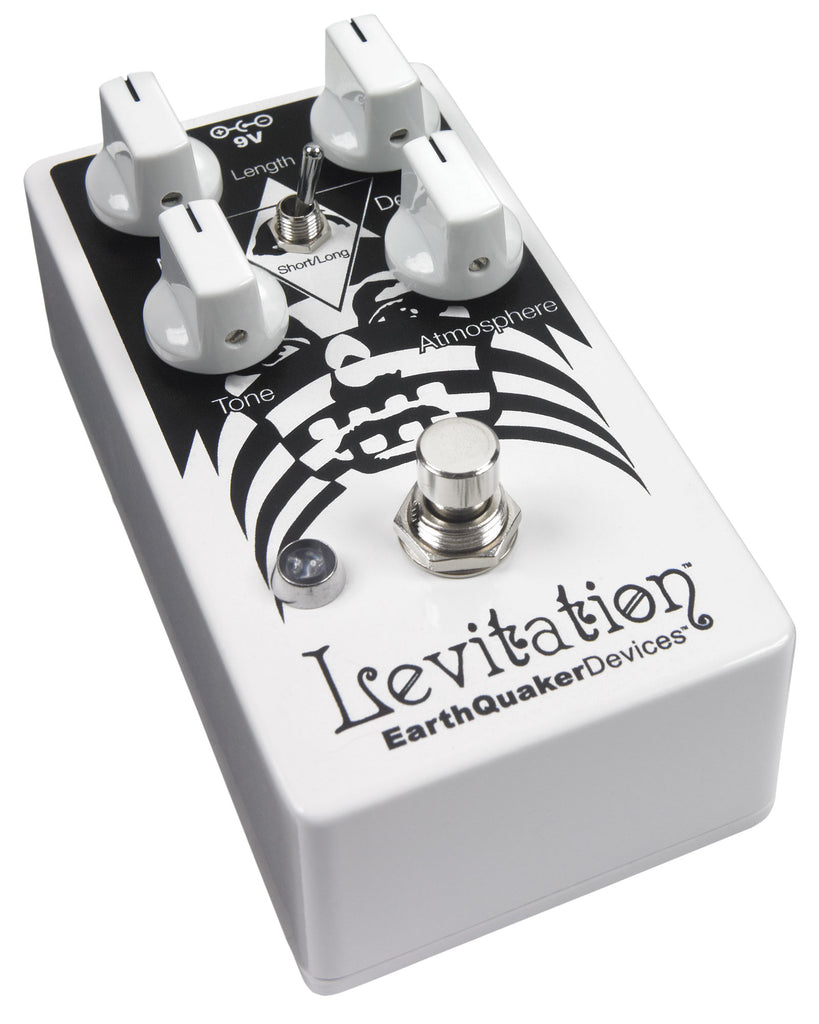

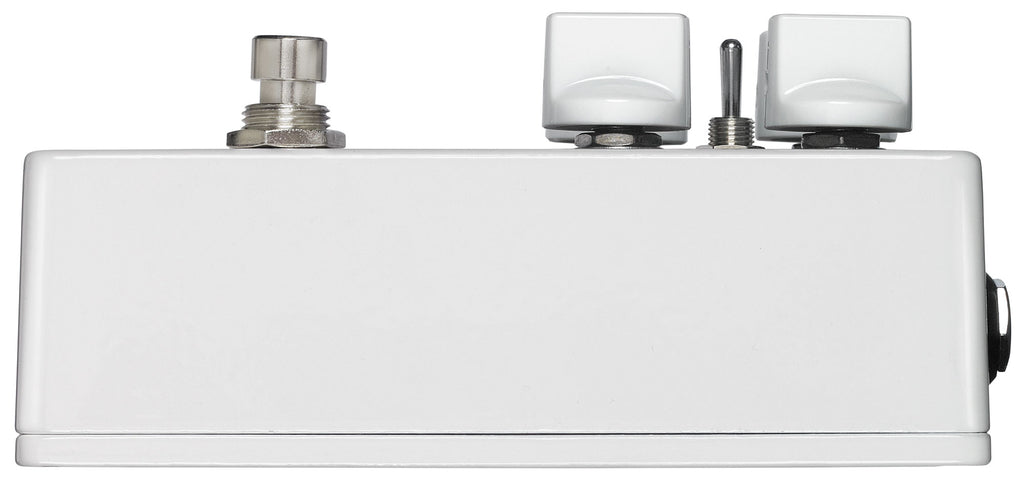

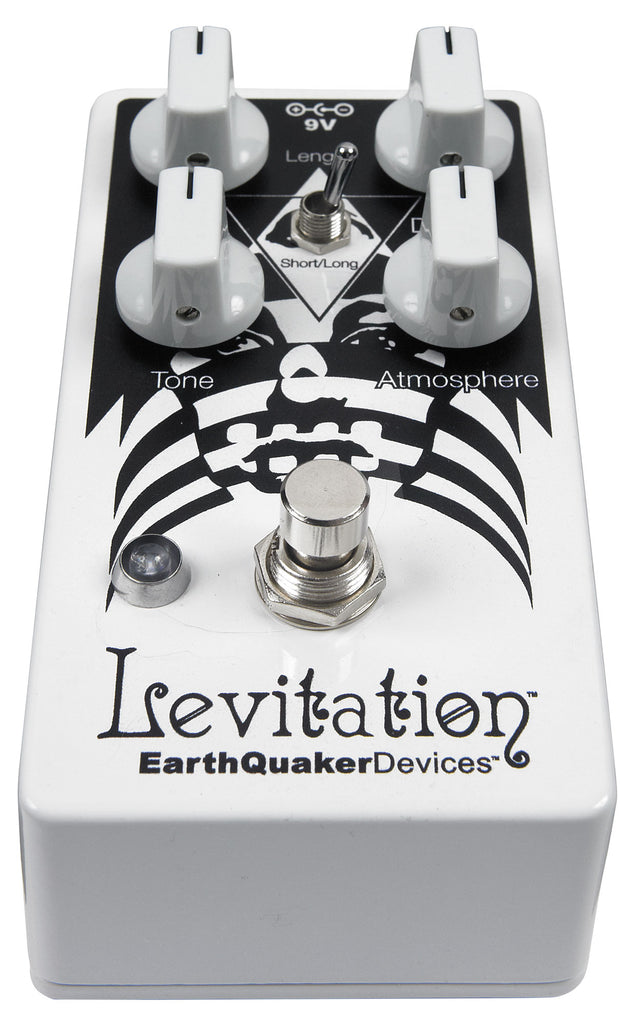

EarthQuaker Devices Levitation (V2) Reverb Pedal
Levitate your tones to all-new heights of ambiance with the Levitation Reverb Pedal!
This reverb pedal was designed to emulate the old-school chambers, plates, and of course springs that are perfect for pyschedelic, surf, and any other music that needs a healthy wash of 'verb-y goodness.
Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw: 72 mA
Input Impedance: 1 MΩ
Output Impedance: <10 kΩ
Power: 9 volt DC (center pin negative)
NOTICE from builder:
This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
Since the switching is relay based, it requires power to pass signal.
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.
DO NOT RUN AT HIGHER VOLTAGES!
